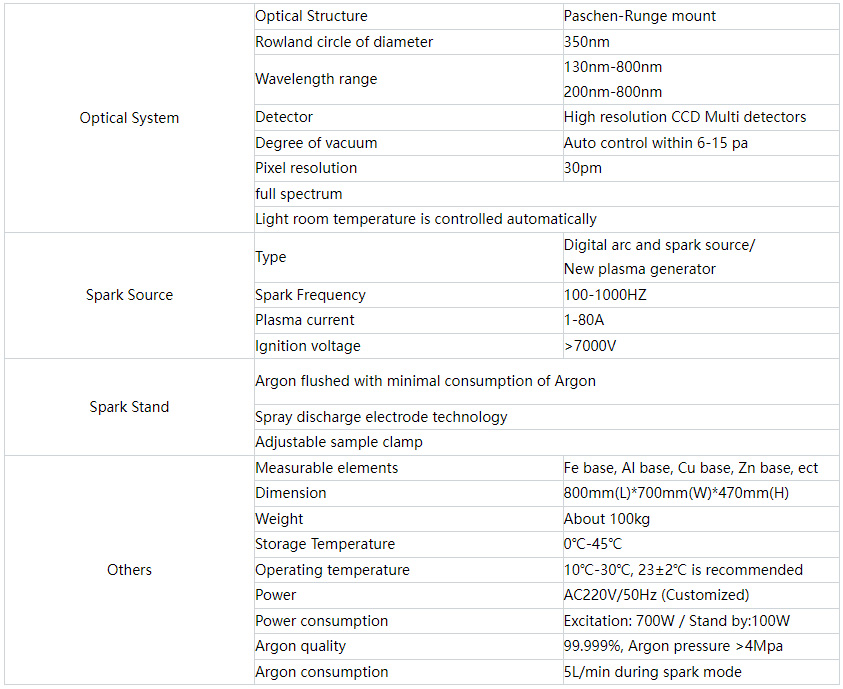

Optical System
|
Optical Structure
|
Paschen-Runge mount
|
Rowland circle of diameter
|
350nm
|
|
Wavelength range
|
130nm-800nm
200nm-800nm
|
|
Detector
|
High resolution CCD Multi detectors
|
|
Degree of vacuum
|
Auto control within 6-15 pa
|
|
Pixel resolution
|
30pm
|
|
full spectrum
|
||
Light room temperature is controlled automatically
|
||
Spark Source
|
Type
|
Digital arc and spark source/
New plasma generator
|
Spark Frequency
|
100-1000HZ
|
|
Plasma current
|
1-80A
|
|
Ignition voltage
|
>7000V
|
|
Spark Stand
|
Argon flushed with minimal consumption of Argon
|
|
Spray discharge electrode technology
|
||
Adjustable sample clamp
|
||
Others
|
Measurable elements
|
Fe base, Al base, Cu base, Zn base, ect
|
Dimension
|
800mm(L)*700mm(W)*470mm(H)
|
|
Weight
|
About 100kg
|
|
Storage Temperature
|
0℃-45℃
|
|
Operating temperature
|
10℃-30℃, 23±2℃ is recommended
|
|
Power
|
AC220V/50Hz (Customized)
|
|
Power consumption
|
Excitation: 700W / Stand by:100W
|
|
Argon quality
|
99.999%, Argon pressure >4Mpa
|
|
Argon consumption
|
5L/min during spark mode
|
